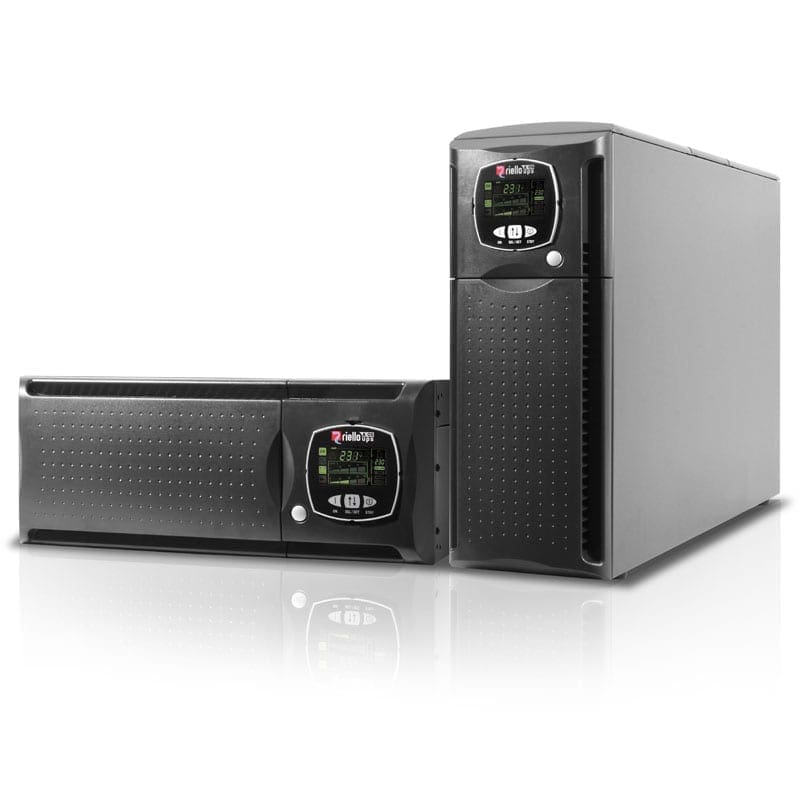

Riello UPS Sentinel Dual (High Power) – SDL 4000

€ 1.691

Riello UPS Sentinel Pro – SDL 4000 – UPS
The flexibility of installation and use (digital display, extractable batteries from the user) and the many communication possibilities, make Sentinel Dual a UPS suitable for many applications, from IT to security.
Model SDL 4000
ENTRANCE
Rated power 4000 VA
Voltage 220-230-240 Vac
Frequency 50/60 Hz ± 5 Hz
Power factor> 0.98
Current distortion ≤7%
BY PASS
Voltage tolerance 180 ÷ 264 Vac (selectable in Economy Mode and Smart Active Mode)
Frequency tolerance Selected frequency ± 5% (user selectable)
EXIT and INVERTER OUTPUT
Rated power 4000 VA
Active power 2400 W
Number of phases 1
Crest factor (Ipicco / Irms) 3: 1
Sinusoidal waveform
Selectable 50/60 Hz frequency
Voltage distortion with distorting load <6%
Voltage distortion with linear load <3%
OVERLOAD TIMES
100% <Load <110% 1 min
Load> 150% 0.5 s
BATTERY
Charging time 4 ÷ 6 h
OTHER CHARACTERISTICS
Color dark gray RAL 7016
Safety Compliance EN 62040-1: 2008; EN 62040-1 / EC: 2009; EN 62040-1 / A1: 2013 and Directive 2014/35 / EU
EMC compliance EN 62040-2 and Directive 2014/30 / EU
Standard equipment 2 10 A cables, 1 IEC-16 A plug, software, 1 serial cable, synoptic release keys
Degree of protection IP20
Protections Overcurrent – short circuit – overvoltage – undervoltage – thermal – excessive battery discharge
Performance Line-Interactive / Smart Active 98%
Noise level (at 1 m) <40 dBA at 1 m
Operating temperature 0 ÷ 40 ° C
Relative humidity <95% without condensation
DATA
Weight 40 kg
Dimensions (h l p) 455x175x520 / 175 (4U) x483x520 mm
Add to quote

NOTICE: For all products not included in the QUICK DELIVERY category, shipping is expected within 20-25 business days. For products from brands like AROMAS DEL CAMPO, BROKIS, PENTA, &TRADITIONS, TOM DIXON, ESTILUZ, shipping is expected after approximately 45 business days. For further information, please contact our team.

Has your order not arrived yet? Contact us via email, including your order number, to receive all available information.

During the Black Friday, Christmas, and summer closing periods, shipping may experience delays. Should there be a shorter or longer expected delivery time, we will make sure to promptly communicate this via email to the customer.

SKU: CSDL4K0AA4 Category: Tag:
Riello Sentinel Dual UPS (High Power) – SDL 4000 – UPS
The Sentinel Dual series is available in the 3.3-4 kVA single-phase input and output and 6.5-8-10kVA three-phase / single-phase output both with On-Line double conversion technology (VFI): the load is always powered by the inverter that supplies a filtered and stabilized sinusoidal voltage in voltage, shape and frequency. The input and output filters greatly increase the immunity of the load against network disturbances and lightning.
Sentinel dual can be installed on the floor or on a rack cabinet for networking applications.
For technology and performance (selectable Economy Mode and Smart Active Mode function), diagnostics (standard digital display, RS232 and USB interfaces with included PowerShield³ software, communication slot (for network interface, for second serial card, …) Sentinel dual is the best solution for powering sensitive and vital mission critical users and safety devices (electromedical) guaranteeing maximum reliability.
Weight5,00 kg
Dimensions60 × 45 × 40 cm
