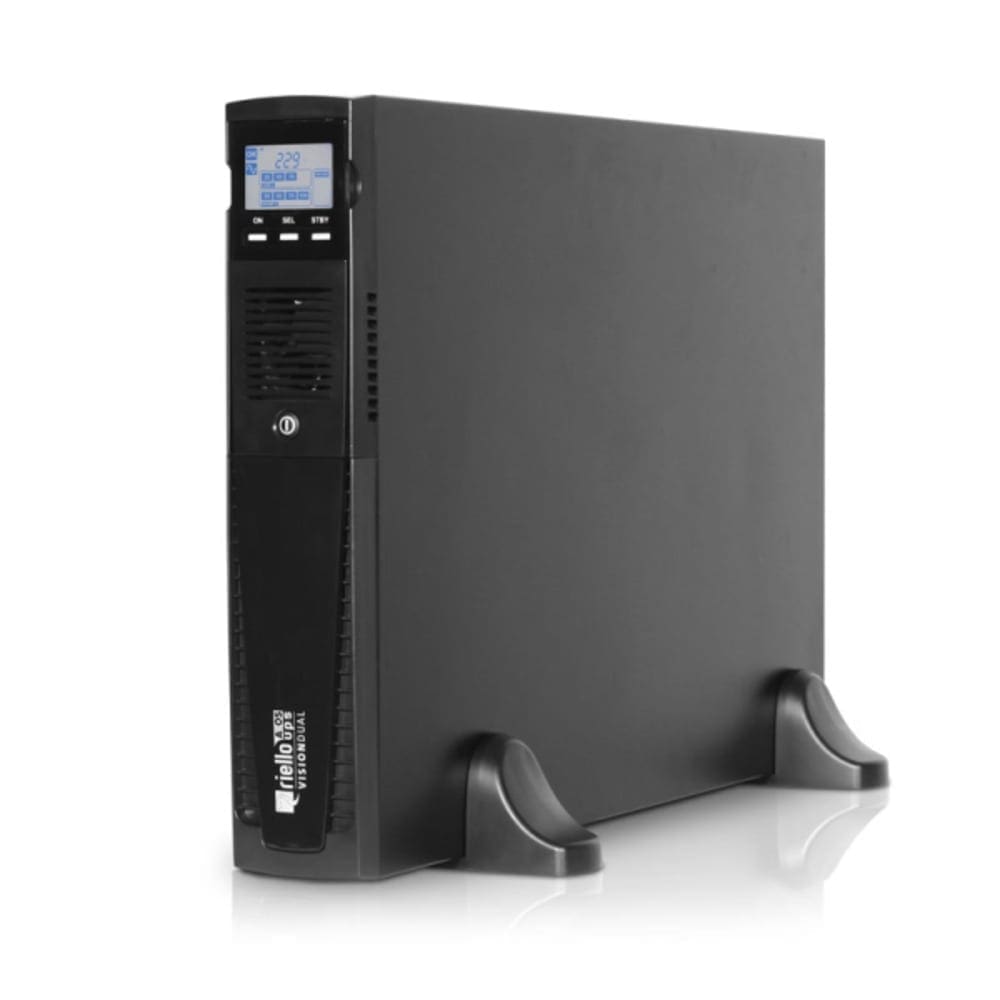

Riello UPS – Vision Dual – VSD 2200
€ 942
Riello UPS – Vision Dual – VSD 2200
The VISION DUAL series (tower and rack), includes models from 1100 VA to 3000 VA with digital sinusoidal technology.
The VISION DUAL series, for advanced connectivity and communication, is the ideal solution for the most demanding users, who require high protection and extreme versatility of the power supply system.
VISION DUAL is the best protection for network devices, conventional servers or racks and network backup systems.
You will appreciate VISION DUAL for the functional and modern design and for the performance improvements introduced by the constant technological research in the Riello UPS laboratories.
The UPS makes it possible to obtain an efficiency of 98% and therefore reduced energy consumption and has an output power factor of 0.9.
ENTRANCE
Rated power: 2200 VA
Voltage: 220-230-240
Frequency: 50/60 Hz with automatic selection
Frequency tolerance: ± 5Hz
Power factor:> 0.98
Current distortion: <7%
EXIT and INVERTER OUTPUT
Rated power: 2200 VA
Active power: 1980 W
Number of phases: 1
Crest factor (Ipicco / Irms): 2.5: 1
Waveform from battery: Sinusoidal
Frequency in battery operation: Selectable: 50 Hz or 60 Hz or automatic selection
Voltage distortion with distorting load: <8%
Voltage distortion with linear load: <3%
OVERLOADING TIMES
100% <Load <110% 5 minutes
100% = Load <150% 10 seconds
Load> 150% 1 second
BATTERY
Type: Lead-free sealed maintenance-free
Charging time: 2-4 hours
OTHER CHARACTERISTICS
Max altitude: 1000 m at nominal power (-1% of power per 100 m above 1000 m) 4000 m maximum
Black colour
Communication: USB / DB9 with RS232 and contacts / Slot for communication interface
Safety Compliance: EN 62040-1: 2008; EN 62040-1 / EC: 2009; EN 62040-1 / A1: 2013 and Directive 2014/35 / EU
EMC compliance: EN 62040-2 and Directive 2014/30 / EU
Standard equipment: Power cable, USB cable, safety manual, quick start, user manual on CDROM
Degree of protection: 2
Lightning immunity: 300 joules
Trademarks: CE
Protections: Overload – short circuit – overvoltage – undervoltage – thermal – excessive battery discharge
Line-Interactive / Smart Active performance: 98.5%
Noise level (at 1 m): <40 bBA @ 1 m
Storage temperature: 0 ÷ 40 ° C
Relative humidity: 5 – 95% without condensation
DATA
Weight: 28 kg
Dimensions (h l p): 87x450x625 / 2Ux19”x625 mm
